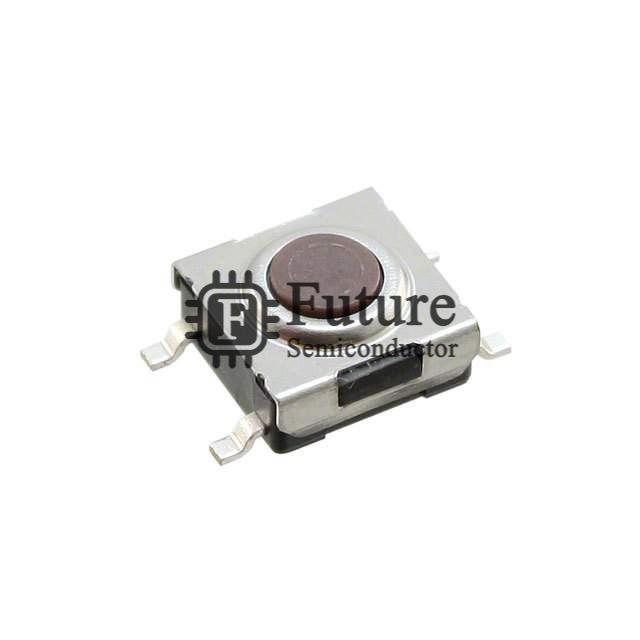

NKK Switches CB315FP-R

Name: CB315FP-R
Brand: NKK Switches
SKU: CB315FP-R
Price: 0.6272 USD
Availability: InStock
Rating: 4.8 (362 reviews)

MFG Part Number: CB315FP-R

Available Quantity: 26370 Pieces

Reference Price: USD 0.6272

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: CB3 SWITCH TACTILE SPST-NO 0.05A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Tactile Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CB315FP-R.pdf

Request Quotation for CB315FP-R

Company Name

Contact Person

Phone Number

Address

Email

Message

CB315FP-R Specifications

Manufacturer Part Number	CB315FP-R
Future Part Number	FT-CB315FP-R
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	CB3
CB315FP-R Status (Lifecycle)	In Stock
Part Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	3.10mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.20mm x 6.20mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	157gf
Ingress Protection	-
Features	Sealed - Fully
Operating Temperature	-25°C ~ 70°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CB315FP-R Weight	Contact Us
Replacement Part Number	CB315FP-R-FT
