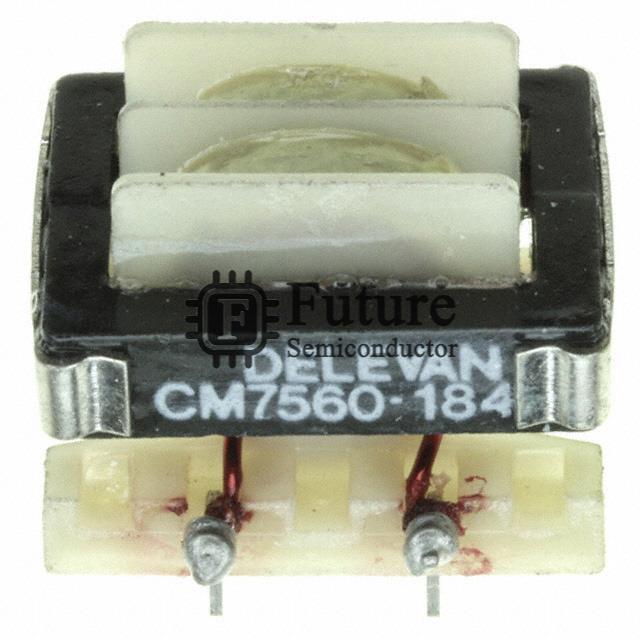

API Delevan Inc. CM7560-184

Name: CM7560-184
Brand: API Delevan Inc.
SKU: CM7560-184
Price: 5.7188 USD
Availability: InStock
Rating: 4.8 (488 reviews)

MFG Part Number: CM7560-184

Available Quantity: 69850 Pieces

Reference Price: USD 5.7188

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: API Delevan Inc.

Brief Description: CM7560 CMC 180UH 4.5A 2LN TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: CM7560-184.pdf

Request Quotation for CM7560-184

Company Name

Contact Person

Phone Number

Address

Email

Message

CM7560-184 Specifications

Manufacturer Part Number	CM7560-184
Future Part Number	FT-CM7560-184
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	CM7560
CM7560-184 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	-
Number of Lines	2
Impedance @ Frequency	-
Inductance @ Frequency	180µH @ 1kHz
Current Rating (Max)	4.5A
DC Resistance (DCR) (Max)	19 mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-55°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.071" L x 0.858" W (27.20mm x 21.80mm)
Height (Max)	0.861" (21.86mm)
Package / Case	Vertical, 4 PC Pin
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
CM7560-184 Weight	Contact Us
Replacement Part Number	CM7560-184-FT
