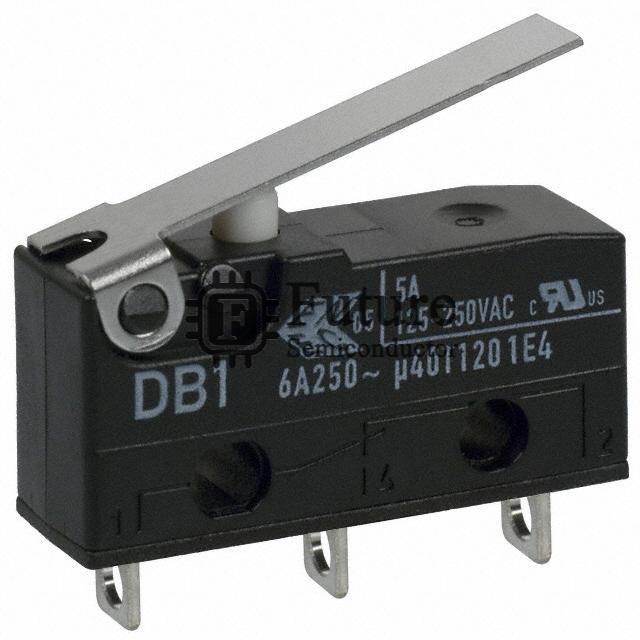

ZF Electronics DB1C-A1LB

Name: DB1C-A1LB
Brand: ZF Electronics
SKU: DB1C-A1LB
Price: 1.952 USD
Availability: InStock
Rating: 4.6 (619 reviews)

MFG Part Number: DB1C-A1LB

Available Quantity: 61470 Pieces

Reference Price: USD 1.952

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ZF Electronics

Brief Description: DB SWITCH SNAP ACTION SPDT 5A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Snap Action, Limit Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: DB1C-A1LB.pdf

Request Quotation for DB1C-A1LB

Company Name

Contact Person

Phone Number

Address

Email

Message

DB1C-A1LB Specifications

Manufacturer Part Number	DB1C-A1LB
Future Part Number	FT-DB1C-A1LB
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	DB
DB1C-A1LB Status (Lifecycle)	In Stock
Part Status	Active
Circuit	SPDT
Switch Function	On-Mom
Current Rating	5A (AC), 1A (DC)
Voltage Rating - AC	125V
Voltage Rating - DC	48V
Actuator Type	Lever, Straight
Mounting Type	Chassis Mount
Termination Style	Solder Lug
Ingress Protection	IP50 - Dust Protected
Features	-
Operating Force	60gf
Release Force	-
Pretravel	0.157" (4.0mm)
Differential Travel	0.020" (0.5mm)
Overtravel	0.079" (2.0mm)
Operating Temperature	-40°C ~ 120°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
DB1C-A1LB Weight	Contact Us
Replacement Part Number	DB1C-A1LB-FT
