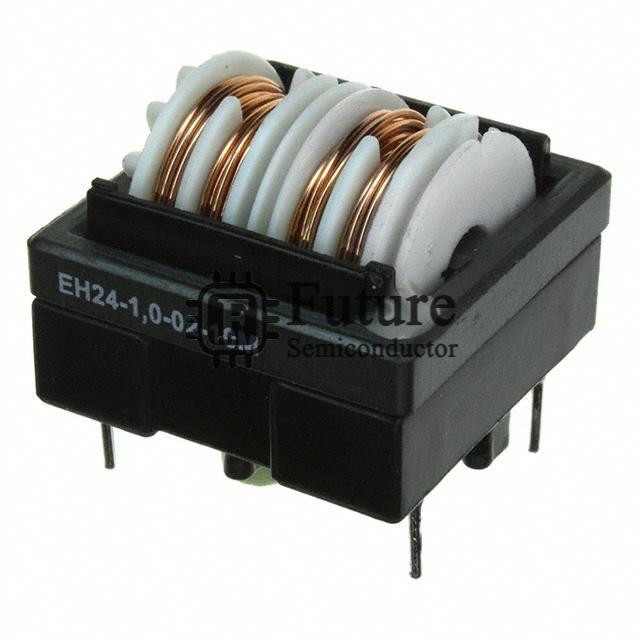

Schaffner EMC Inc. EH24-1.0-02-10M

Name: EH24-1.0-02-10M
Brand: Schaffner EMC Inc.
SKU: EH24-1.0-02-10M
Price: 1.968 USD
Availability: InStock
Rating: 4.7 (592 reviews)

MFG Part Number: EH24-1.0-02-10M

Available Quantity: 52010 Pieces

Reference Price: USD 1.968

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Schaffner EMC Inc.

Brief Description: EH COMMON MODE CHOKE 10MH 1A 2LN TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: EH24-1.0-02-10M.pdf

Request Quotation for EH24-1.0-02-10M

Company Name

Contact Person

Phone Number

Address

Email

Message

EH24-1.0-02-10M Specifications

Manufacturer Part Number	EH24-1.0-02-10M
Future Part Number	FT-EH24-1.0-02-10M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	EH
EH24-1.0-02-10M Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	-
Inductance @ Frequency	10mH @ 10kHz
Current Rating (Max)	1A
DC Resistance (DCR) (Max)	244 mOhm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-25°C ~ 100°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max)	0.827" (21.00mm)
Package / Case	Horizontal, 4 PC Pin
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
EH24-1.0-02-10M Weight	Contact Us
Replacement Part Number	EH24-1.0-02-10M-FT
