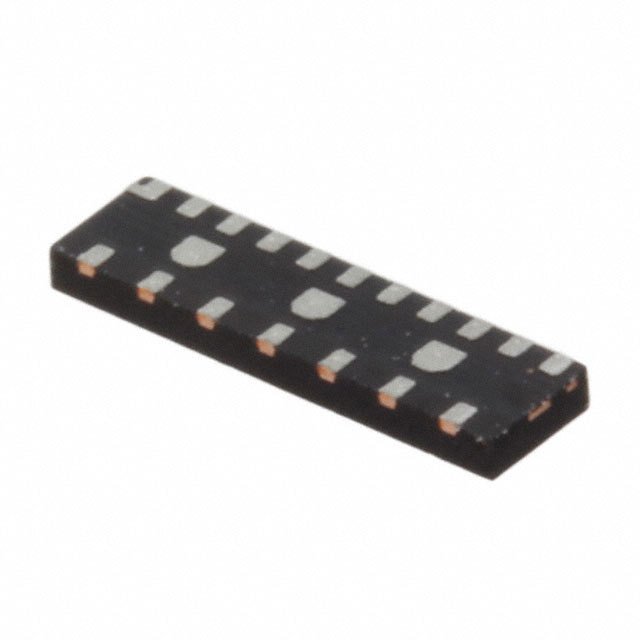

ON Semiconductor ESD8040MUTAG

Name: ESD8040MUTAG
Brand: ON Semiconductor
SKU: ESD8040MUTAG
Price: 0.49268 USD
Availability: InStock
Rating: 4.9 (553 reviews)

MFG Part Number: ESD8040MUTAG

Available Quantity: 97270 Pieces

Reference Price: USD 0.49268

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - TVS DIODE 3.3V 12V 18UDFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: TVS - Diodes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ESD8040MUTAG.pdf

Request Quotation for ESD8040MUTAG

Company Name

Contact Person

Phone Number

Address

Email

Message

ESD8040MUTAG Specifications

Manufacturer Part Number	ESD8040MUTAG
Future Part Number	FT-ESD8040MUTAG
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
ESD8040MUTAG Status (Lifecycle)	In Stock
Part Status	Active
Type	Zener
Unidirectional Channels	14
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	12V (Typ)
Current - Peak Pulse (10/1000µs)	16A (100ns)
Power - Peak Pulse	-
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.3pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	18-UFDFN Exposed Pad
Supplier Device Package	18-UDFN (5.5x1.5)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ESD8040MUTAG Weight	Contact Us
Replacement Part Number	ESD8040MUTAG-FT
