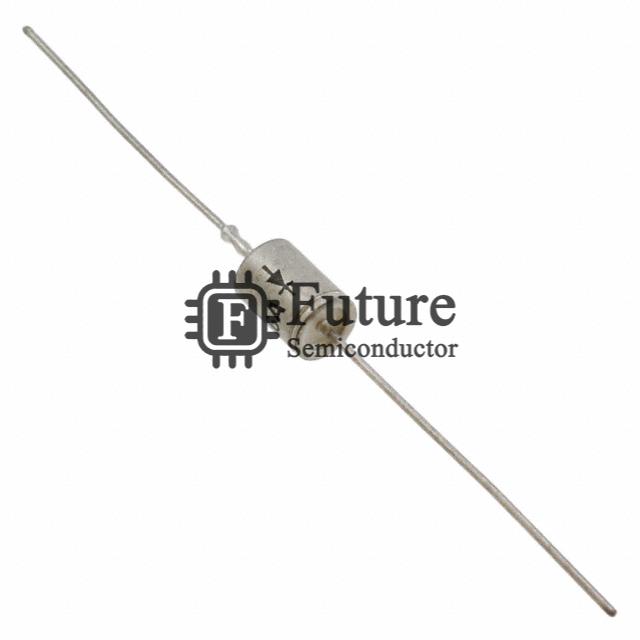

Microsemi Corporation JANTXV1N5641A
- MFG Part Number
- JANTXV1N5641A
- Available Quantity
- 13130 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Microsemi Corporation
- Brief Description
- Military, MIL-PRF-19500/500 TVS DIODE 18.8V 30.6V DO13
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- TVS - Diodes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- JANTXV1N5641A.pdf
JANTXV1N5641A Specifications
| Manufacturer Part Number | JANTXV1N5641A |
|---|---|
| Future Part Number | FT-JANTXV1N5641A |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | Military, MIL-PRF-19500/500 |
| JANTXV1N5641A Status (Lifecycle) | In Stock |
| Part Status | Discontinued at Future Semiconductor |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 18.8V |
| Voltage - Breakdown (Min) | 20.9V |
| Voltage - Clamping (Max) @ Ipp | 30.6V |
| Current - Peak Pulse (10/1000µs) | 49A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-13 |
| Supplier Device Package | DO-13 (DO-202AA) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| JANTXV1N5641A Weight | Contact Us |
| Replacement Part Number | JANTXV1N5641A-FT |
