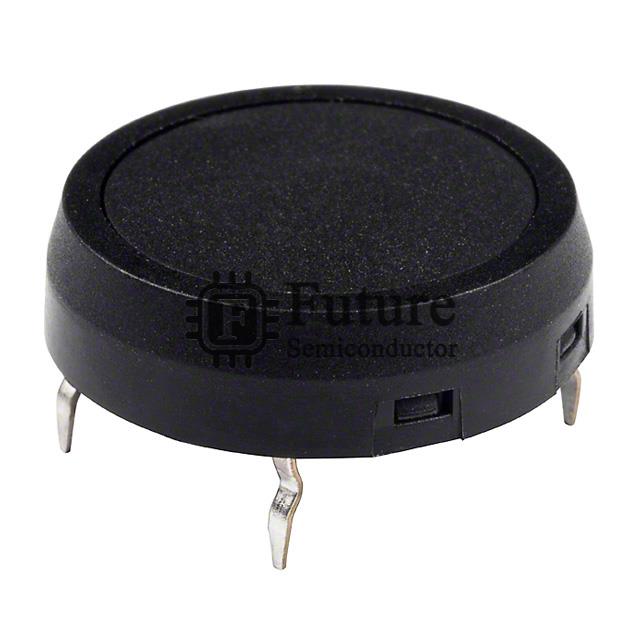

NKK Switches JF15CP2A

Name: JF15CP2A
Brand: NKK Switches
SKU: JF15CP2A
Price: 2.536 USD
Availability: InStock
Rating: 4.5 (709 reviews)

MFG Part Number: JF15CP2A

Available Quantity: 87040 Pieces

Reference Price: USD 2.536

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: JF SWITCH TACTILE SPST-NO 0.05A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Tactile Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JF15CP2A.pdf

Request Quotation for JF15CP2A

Company Name

Contact Person

Phone Number

Address

Email

Message

JF15CP2A Specifications

Manufacturer Part Number	JF15CP2A
Future Part Number	FT-JF15CP2A
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	JF
JF15CP2A Status (Lifecycle)	In Stock
Part Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 24VDC
Actuator Type	Round Button
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	5.08mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	17.70mm Dia
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	300gf
Ingress Protection	-
Features	Process Sealed
Operating Temperature	-25°C ~ 85°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JF15CP2A Weight	Contact Us
Replacement Part Number	JF15CP2A-FT
