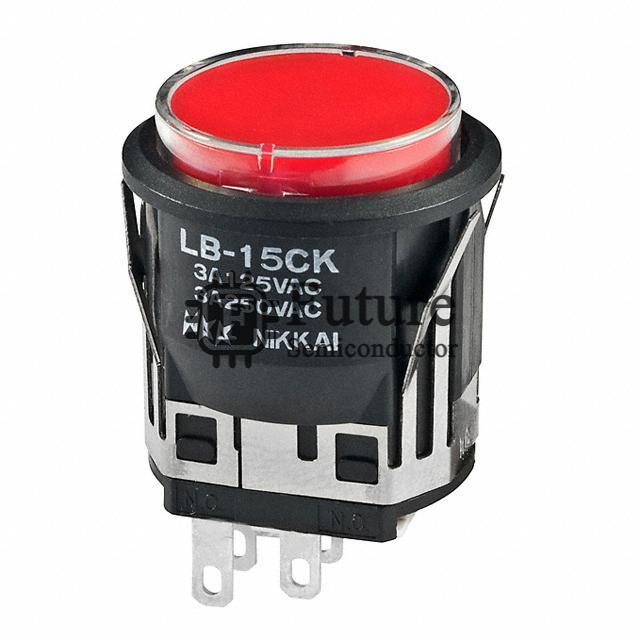

NKK Switches LB15CKW01-12-JC

Name: LB15CKW01-12-JC
Brand: NKK Switches
SKU: LB15CKW01-12-JC
Price: 9.712 USD
Availability: InStock
Rating: 4.6 (176 reviews)

MFG Part Number: LB15CKW01-12-JC

Available Quantity: 63910 Pieces

Reference Price: USD 9.712

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: LB SWITCH PUSHBUTTON SPDT 3A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Pushbutton Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: LB15CKW01-12-JC.pdf

Request Quotation for LB15CKW01-12-JC

Company Name

Contact Person

Phone Number

Address

Email

Message

LB15CKW01-12-JC Specifications

Manufacturer Part Number	LB15CKW01-12-JC
Future Part Number	FT-LB15CKW01-12-JC
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	LB
LB15CKW01-12-JC Status (Lifecycle)	In Stock
Part Status	Active
Type	Standard, Illuminated
Circuit	SPDT
Switch Function	On-Mom
Current Rating	3A (AC/DC)
Voltage Rating - AC	125V
Voltage Rating - DC	30V
Actuator Type	Round, Button
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Illumination Type, Color	Incandescent, Red
Illumination Voltage (Nominal)	12 VAC
Mounting Type	Panel Mount, Snap-In
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection	-
Features	-
Panel Cutout Dimensions	Circular - 22.00mm Dia
Operating Temperature	-25°C ~ 50°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
LB15CKW01-12-JC Weight	Contact Us
Replacement Part Number	LB15CKW01-12-JC-FT
