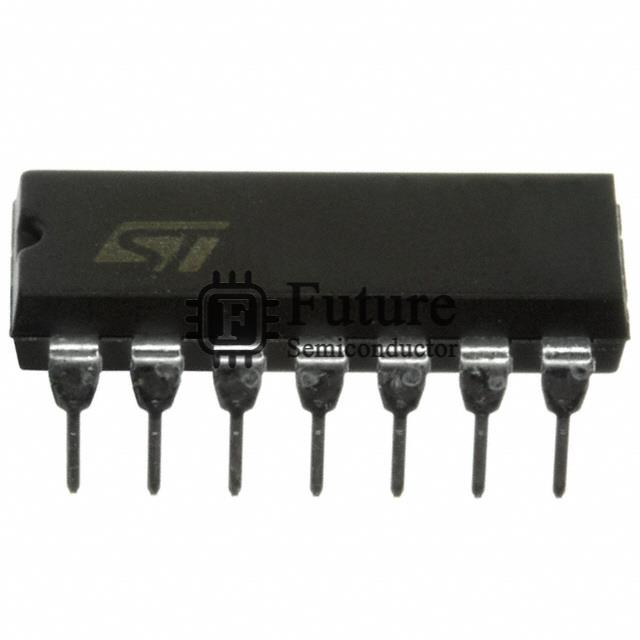

STMicroelectronics M74HC4016B1R

Name: M74HC4016B1R
Brand: STMicroelectronics
SKU: M74HC4016B1R
Availability: InStock
Rating: 4.7 (52 reviews)

MFG Part Number: M74HC4016B1R

Available Quantity: 76320 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: STMicroelectronics

Brief Description: - IC SWITCH QUAD 1X1 14DIP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Interface - Analog Switches, Multiplexers, Demultiplexers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: M74HC4016B1R.pdf

Request Quotation for M74HC4016B1R

Company Name

Contact Person

Phone Number

Address

Email

Message

M74HC4016B1R Specifications

Manufacturer Part Number	M74HC4016B1R
Future Part Number	FT-M74HC4016B1R
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
M74HC4016B1R Status (Lifecycle)	In Stock
Part Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	120 Ohm
Channel-to-Channel Matching (ΔRon)	6 Ohm
Voltage - Supply, Single (V+)	2V ~ 12V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	14ns, 24ns
-3db Bandwidth	42MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	1pF, 5pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-50dB @ 1MHz
Operating Temperature	-55°C ~ 125°C (TA)
Package / Case	14-DIP (0.279", 7.10mm)
Supplier Device Package	14-DIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
M74HC4016B1R Weight	Contact Us
Replacement Part Number	M74HC4016B1R-FT
