Home / Products / Power Supplies - Board Mount / DC DC Converters / PTN78060HAZT

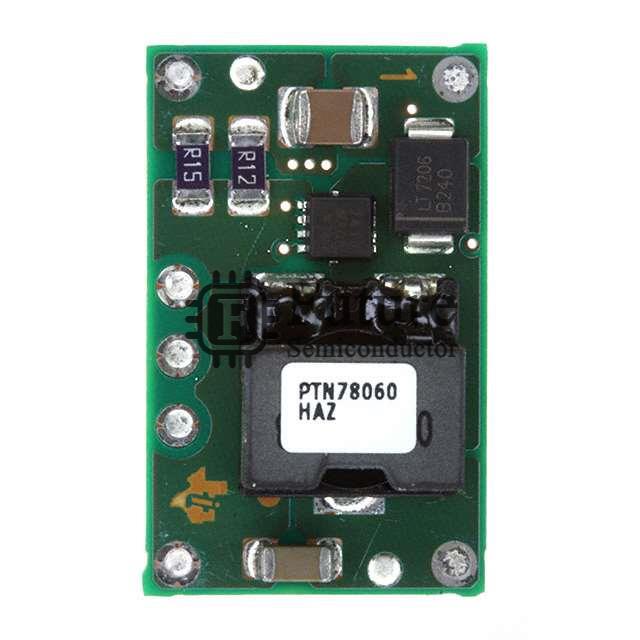

Texas Instruments PTN78060HAZT
- MFG Part Number
- PTN78060HAZT
- Available Quantity
- 22730 Pieces
- Reference Price
- USD 16.747552
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Texas Instruments
- Brief Description
- PTN78060H DC DC CONVERTER 11.85-22V
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PTN78060HAZT.pdf
PTN78060HAZT Specifications
| Manufacturer Part Number | PTN78060HAZT |
|---|---|
| Future Part Number | FT-PTN78060HAZT |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PTN78060H |
| PTN78060HAZT Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 15V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 11.85 ~ 22V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 96% |
| Mounting Type | Surface Mount |
| Package / Case | 7-SMD Module |
| Size / Dimension | 1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PTN78060HAZT Weight | Contact Us |
| Replacement Part Number | PTN78060HAZT-FT |
