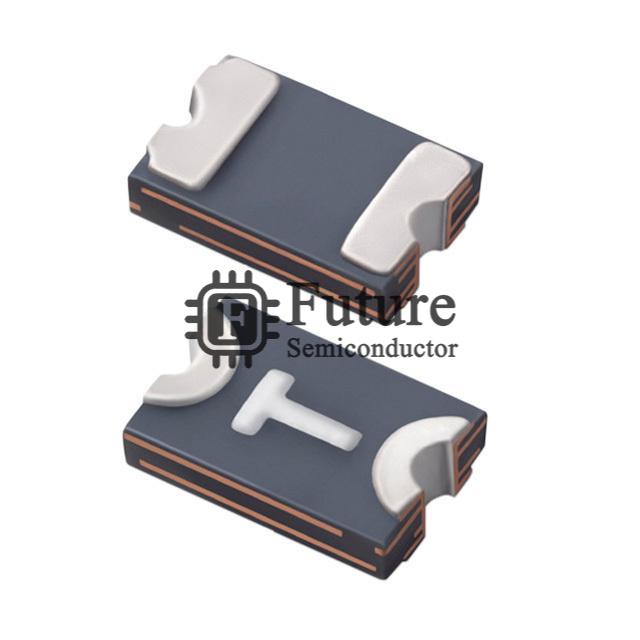

Littelfuse Inc. SETP0805-100-SE

Name: SETP0805-100-SE
Brand: Littelfuse Inc.
SKU: SETP0805-100-SE
Price: 0.1806 USD
Availability: InStock
Rating: 4.7 (691 reviews)

MFG Part Number: SETP0805-100-SE

Available Quantity: 37820 Pieces

Reference Price: USD 0.1806

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Littelfuse Inc.

Brief Description: POLY-FUSE® setP™ PTC RESETTABLE 60MA 6V 0805

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PTC Resettable Fuses

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: SETP0805-100-SE.pdf

Request Quotation for SETP0805-100-SE

Company Name

Contact Person

Phone Number

Address

Email

Message

SETP0805-100-SE Specifications

Manufacturer Part Number	SETP0805-100-SE
Future Part Number	FT-SETP0805-100-SE
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	POLY-FUSE® setP™
SETP0805-100-SE Status (Lifecycle)	In Stock
Part Status	Active
Type	Polymeric
Voltage - Max	6V
Current - Max	1A
Current - Hold (Ih) (Max)	60mA
Current - Trip (It)	250mA
Time to Trip	1s
Resistance - Initial (Ri) (Min)	500 mOhms
Resistance - Post Trip (R1) (Max)	12 Ohms
Resistance - 25°C (Typ)	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.051" W (2.00mm x 1.30mm)
Height - Seated (Max)	-
Thickness (Max)	0.025" (0.63mm)
Lead Spacing	-
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
SETP0805-100-SE Weight	Contact Us
Replacement Part Number	SETP0805-100-SE-FT
